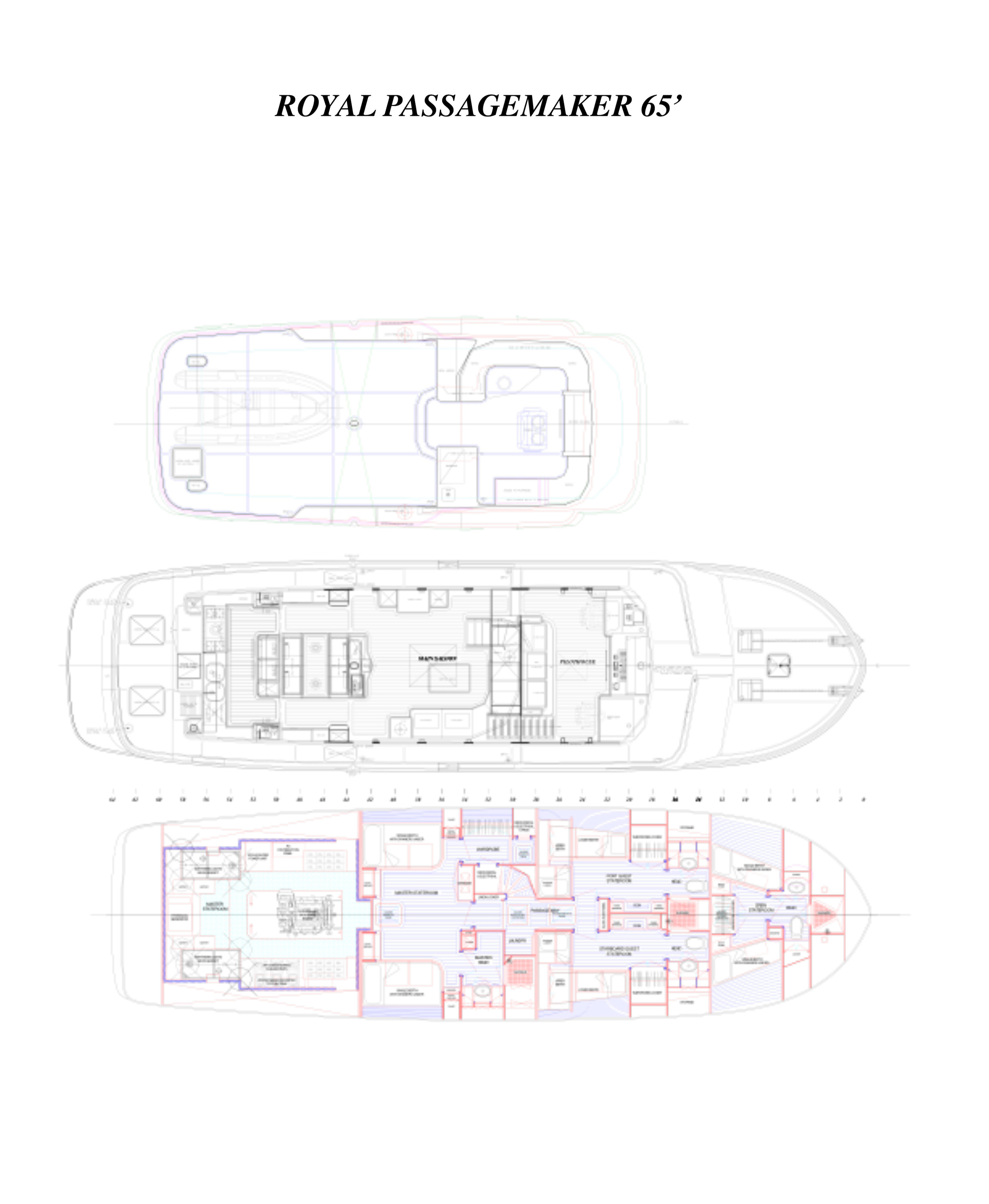

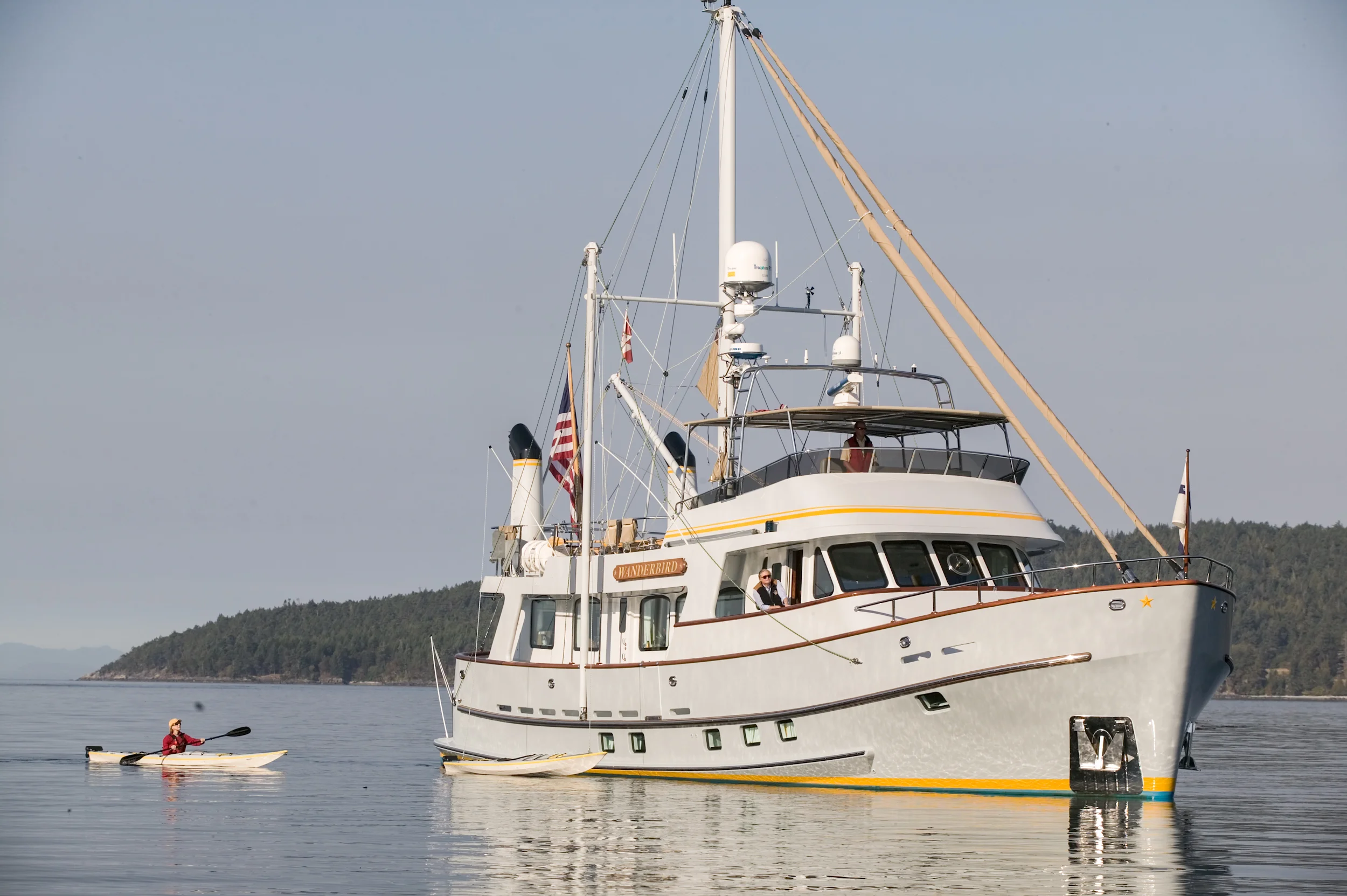

Royal Passagemaker 65


The Royal Passagemaker 65' demonstrates Park Isle Marine's commitment by offering a level of quality construction and design detail seen only on the finest yachts. The vessel has been designed by Victoria Naval Architect Gregory C. Marshall. Based on the tried and proven "Seamaster" hull form, the wealth of experience in design is very evident.

If you have any further questions or would like to discuss other options and possibilities please don't hesitate to contact me any time.

GENERAL SPECIFICATIONS:

LOA:     65’ – 0”

LWL:     58’ – 10”

BEAM:     7’ – 9”

DRAFT:     6’ – 8”

DISPLACEMENT:     180,000 lbs. (Approx.)

FUEL:     3000 USG

WATER:     00 USG



GENERAL CONSTRUCTION SPECIFICATIONS:

The hulls, decks and cabin structures are vacuum infused with vinylester resin and unidirectional glass fibres. When core is used in our laminates, we use ATC Corecel triple cut within our infused laminate. There are generous overlaps at all edges of material runs, with the stem and keel having double hull laminates. Being that we use vinylester resin for vacuum infusion, the risk of osmosis has been eliminated.

ROYAL PASSAGEMAKER 65 STANDARD EQUIPMENT

General Construction

The hulls, decks and cabin structures are vacuum infused with vinylester resin and unidirectional glass fibres. When core is used in our laminates, we use ATC Corecel triple cut within our infused laminate. There are generous overlaps at all edges of material runs, with the stem and keel having double hull laminates. Being that we use vinylester resin for vacuum infusion, the risk of osmosis has been eliminated.

The deck and cabin structure is cored with high density foam which provides strength and rigidity as well as provides an insulating factor. (Unlike wood or Balsa core the foam does not break down or rot over time.)

Hull, Deck & Bridge

  • Commercial grade (spool type) anchor windlass with 100' of 5/8" studlink chain and 300' of rode
  • Two Boarding gates
  • S.S. anchor roller
  • Bronze under water thru hull fittings and seacocks
  • 8 Stainless steel deck cleats & Hawse pipes
  • Full instrumentation in pilot house & on bridge
  • Hand rails are 1 ¼ ' welded stainless steel
  • Lewmar deck hatch
  • "L" shaped bridge lounge with storage under and table
  • Radar Mast
  • Tinted plexiglass wind screen
  • Durable heavy duty vinyl rub rail mounted on moulded fiberglass guard (rub rail)

Engine Room, Machinery & Mechanical

  • CATERPILLAR 3406B (B) rating 400 HP @ 1800 RPM
  • ZF 4.078:1 reduction gear
  • 3" #316 Stainless Steel propeller shaft
  • Bronze four blade propeller
  • 8 KW NORTHERN LIGHTS Generator
  • Soft wall exhaust hose with in line G.R.P. mufflers
  • 2" Navy Hull Board (U.S. Coast Guard approved) acoustical/Thermal insulation
  • Work bench with 110V. outlet
  • Two RACOR 75-900 FG fuel filters
  • Custom fuel transfer system (capable of polishing all fuel within 8 hours).
  • 2500 Imperial (3000 U.S.) gal. Fuel capacity in two moulded G.R.P. tanks
  • Two 2000 GPH. & one 4000 GPH. electric bilge pumps
  • 350 Imperial (420 US) Gallon GRP. Water tank coated with a potable water certified epoxy coating system
  • HEADHUNTER (high capacity/multiple fixture) water pressure system
  • 20 Gallon hot water tank

Control, Navigation & Electrical

  • Morse throttle & gear controls
  • JASTRAM dual station hydraulic steering
  • International navigation lights
  • Dual trumpet air horns
  • Complete engine instrumentation
  • Engine protection contactors for oil pressure and water temperature
  • Tinned copper wire throughout the vessel
  • 2500 watt inverter/130 Amp. smart charger
  • Batteries 600 amp Starting Isolated from 1200 amp house bank
  • Vapour proof marine battery switches
  • 12 V./120 V. Electrical distribution panel with magnetic circuit breakers, volt & amp meters
  • 120 V. - 30 amp. shore power connection



Accommodations & Interior

  • Maple, White Ash or Mahogany paneling & cabinetry throughout
  • Soft vinyl headliner
  • Plush carpeting with underlay (salon, Pilothouse, Companionways & staterooms)
  • Vinyl floor coverings in the Galley & heads
  • Four burner Propane stove with oven
  • 12 v./110 v. fridge/freezer
  • Solid surface counter tops in Galley & heads
  • SEALAND toilets
  • Exhaust fans in both heads
  • Stainless Steel Port lights with screens in all accommodation compartments (lower deck level)

Engine & Mechanical Options

  • CATERPILLAR 3408 - 396 HP @1350 RPM.
  • Optional engines available with TWIN DISC, ZF or HUNDESTAD reduction gears
  • Spare propeller and shaft
  • HUNDESTAD Controlable Pitch Screw
  • 12 KW. To 32 KW. Generator set (To be specified & priced)
  • Bow Thruster (To be specified & priced)
  • Bulbous Bow

    Hydraulics package (200 gallon per min. emergency bilge pump/fire pump, bow thruster, hydraulic windlass power, Davit winch, Hydraulic/mechanical stabilisation).
  • Stabilisation : Bilge keels…NAIAD (active fin system)
  • Diesel furnace Hydraunic Heating system
  • Air conditioning (To be specified & priced)
  • 6125 John Deere 400 hp@2000 rpm

HULL CONSTRUCTION:

• Vacuum Infused with vinylester resin

• Closed cell foam core

• Gelcoat finish

• All cored laminates are Vacuum Infused for light weight and superior strength

• Hydraulic stern gate / swim platform

• Full keel and skeg for rudder support and propeller protection

• Full bonding of all underwater metals to zinc plates for electrolysis

• 3 watertight bulkheads

• UV stabilized black PVC rubrail

• 10 frameless port lights recessed (3/4” tempered glass with fritt, 30% grey)



DECK AND EXTERIOR HARDWARE:

• Recessed walk around side deck for safety

• Non-skid pattern on all outside decks

• Hinged doors on each side of Pilothouse and from Salon to Aftdeck (Weather tight)

• 20 frameless windows (3/8” tempered safety glass on cabin sides, ½” tempered safety glass in Pilothouse)

• 1 hatch to Crews Quarters

• 2 watertight hatches to Lazarette

• 1.25” stainless steel hand rails with penant staff on Bow (welded)

• Storage lockers in Portuguese Bridge

• 10 stainless steel hawse cleats

• Hinged boarding gates.  Port and Starboard

• 2” stainless steel fuel fill, water fill and waste suction fittings

• 2 Engine room vents with fan

• Outside deck lighting



ANCHOR PACKAGE:

• Windless with controls at Bow

• Anchor roller

• Bruce style anchor (140 lbs)

• Chain and rode



BOAT DECK AND FLYBRIDGE:

• Access from Pilothouse and Aft deck

• Control station and M/E Instrumentation

• Davit support built in

• “L” shaped bridge lounge with storage

• Radar mast

• Tinted plexiglass wind screen on Flybridge



ENGINE ROOM:

• Access from Aft deck

• Full lighting

• 2” navy hull board acoustical and thermal insulation

• Main Engine John Deere with ZF gear

• 8 KW genset Northern Lights with water separator muffler

• Liquid containment under engines

• Walker Airsep filter system

• Fuel polish / transfer system with water separator (Racor filters)

• Stainless Steel Shaft

• Marlon sea cocks

• Bronze propeller



STEERING SYSTEM:

• Hydraulic steering (2 station)

• Large high efficiency rudder

• Spoked wheel (Pilothouse)

• Stainless steel destroyer wheel (Flybridge)



PILOT HOUSE:

• Engine instruments

• Compass

• Overhead lighting

• 110 V outlets

• Plush carpet sole with underlay

• 2 hinged side doors (weather tight)

• Settee with storage underneath

• Chart table with drawers

• Access to Salon, Flybridge and Side decks

• Hinged weather tight door to Flybridge

• ½” Frameless windows (clear with fritt)



SALON:

• Access to Pilothouse, Galley, Galley Sidedecks and Lowerdeck

• 2 Settees with tables and storage underneath

• Mahogany cabinets throughout

• Soft vinyl headliner

• Plush carpet with underlay

• Entertainment center

• 3/8” frameless windows (30% grey with fritt)

• 2 hinged doors



GALLEY:

• Galley aft of Salon

• Double stainless steel sinks with faucets

• 12V / 110V Fridge / Freezer

• Propane stove with oven

• Exhaust fan

• 110V outlets

• Vinyl flooring

• Overhead lights



MASTER STATEROOM:

• 110 V outlets

• 2 double size berths with storage underneath

• 1 walk-in hanging lockers

• Vanity

• En suite Head with shower

• Overhead lighting

• 4 portlights (fixed frameless ¾” tempered safety glass 30% grey with fritt)



2 GUEST STATEROOMS:

• 2 single berths with storage underneath

• Hanging Locker

• Overhead lights

• Ensuite head and shower

• 110 V outlets

• Vanity

• Shelves with sea rails

• Dressers



HEAD COMPARTMENTS:

• Head Hunter toilets

• Stainless steel sink with mirror above

• Solid surface countertops

• Fan (exhaust)

• Storage under sink

• Entry doors with locking handles

• Overhead lighting



CREWS QUARTERS:

• 2 single berths with storage underneath

• Head with shower

• Access to Foredeck

• Emergency access through watertight door



LAZARETTE:

• 2 water tight hatches providing access from Aft deck

• Lighted and ventilated

• Water tight bulkhead at Engine room



DC SYSTEM:

• Start Batteries 2 x 4D

• Inverter 2500W

• Battery charger – through inverter 130 amp smart charger

• Marine grade tinned copper wire

• DC breaker panel

• Vapour proof battery switches

• International navigation lights



AC SYSTEM:

• Marine grade tinned copper wire

• AC breaker panel

• 50 amp shore power connection

• 50’ cord



OPTIONS:

• Water maker

• Wabasto Hydronic heater

• Air conditioning

• Steelhead Davit

• Freezer

• Washer / Dryer in Utility room

• Bow thrusters

• Active fin stabilizers

• Transom shower

• Salt and fresh water wash downs on Bow

• Barbeque

• Sink on Flybridge

• Bar fridge on Flybridge

• Bulbous Bow

• Windshield wipers



OPTIONAL COMMISIONING AND SAFETY PACKAGE:



• Life Jackets

• Epirb

• Life raft

• Flares

• Bell

• Fenders

• Mooring lines
